To recap, multiple regression
allows us to study the relationship between a dependent variable and multiple
independent variables. The independent variables can be numerical
(quantitative) or dummy (qualitative or categorical) variables. They can also
be functions of independent variables, such as the curvature component and/or
the interaction component. So how do we know what component to put into the
multiple regression model?
You could always use trial and error - but that isn't good science. Formal
techniques include forward selection (start with a simple linear regression
model and add predictor variables as long as significant improvement is made);
backward selection (start with a large pool of predictor variables and
successively remove variables that do not significantly contribute to the
prediction); stepwise regression (like forward selection but variables once
added are also tested for removal after subsequent addition of more variables
to determine if better models result); and best subsets (create subsets or
combinations of all predictor variables and select the model with best
statistical and practical utility). The Handbook of Parametric and Non
parametric Statistical Procedures, by David Sheskin provides more details
on the various methods.
The approach I would like you to use in Assignment 3 is a modification of the
backward selection method. We will hypothesis a full multiple regression model
with a quantitative independent variable, qualitative independent variable,
curvature and interaction. We will then start taking components away that do
not contribute to the statistical utility of the model. However, the way we
take components away will be by following a decision tree in order to give us
some structure.
In getting ready for Assignment 1, the first item is to enter your data into an
Excel Spreadsheet, and create the curvature and interaction terms. I will
demonstrate how to do this with several examples later in these notes. Item 2
requires that you build and test at least 2 of the hypothesized models shown in
the next section, starting with Model 1 (Item 3 of Assignment 3).
Hypothesized
Models
The decision tree will "walk us through" the selection of one of the
following seven models that best fits the sample of data for your Assignment 3.
The symbol QN stands for your quantitative X, QN2 represents
curvature, QL represents the qualitative X, and QN*QL represents interaction.
Model 1: E(Y) = B0 + B1 QN + B2 QN2 + B3 QL + B4 QN*QL
Model 2: E(Y) = B0 + B1 QN + B3 QL + B4 QN*QL
Model 3: E(Y) = B0 + B1 QN + B2 QN2 + B3 QL
Model 4: E(Y) = B0 + B1 QN + B2 QN2
Model 5: E(Y) = B0 + B1 QN + B3 QL
Model 6: E(Y) = B0 + B3 QL
Model 7: E(Y) = B0 + B1 QN
A word description for each model is that the hypothesized regression model for predicting Y includes:
Model 1:
Quantitative and qualitative variables, curvature and interaction
Model 2: Quantitative and qualitative variables, and interaction
Model 3: Quantitative and qualitative variables, and curvature
Model 4: A quantitative variable and curvature
Model 5: Quantitative and qualitative variables
Model 6: A qualitative variable
Model 7: A quantitative variable
Please note that there is no
curvature term for the qualitative variable since categorical variables have no
number properties beyond their 0/1 designation. To determine which model is
best your sample data, we use the following decision tree.
Model
Building Decision Tree
Item 3 in Assignment
3 asks you to run the Model 1 Regression Model. Item 4 in Assignment 3 requires
that you first test to determine if curvature is important in that model. The
decision tree then provides the actions you follow depending on the outcome of
that and subsequent tests.
Item 4. Test curvature (Model 1 vs. 2).
A. If curvature is significant, test interaction (Model 1 vs. 3).
(1). If interaction is significant, stop. Model 1 is "best" model. Go to Item 5 (obtaining the residual, normal and line fit plots).
(2). If interaction is not significant, Build Model 3 and test QL (Model 3 vs. 4).
a. If QL is significant, stop. Model 3 is "best" model. Go to Item 5.
b. If QL is not significant, build Model 4 and stop. Model 4 is "best" model. Go to Item 5.
B. If curvature is not significant, build Model 2 and test interaction (Model 2 vs. 5).
(1). If interaction is significant, stop. Model 2 is "best" model. Go to item 5.
(2). If interaction is not significant, build Model 5 and test QL (Model 5 vs. 7).
a. If QL is significant, test QN (Model 5 vs. 6).
1. If QN is significant, stop. Model 5 is "best" model. Go to Item 5.
2. If QN is not significant, stop. Model 6 is "best model. Go to Item 5.
b. If QL is not significant, stop and select Model 7 as "best" model, even if the Model is not significant. Go to Item 5.
Although Item 5 is not part of the decision tree, it is part of the Assignment 3 requirement so I am repeating it here for ready reference (it and the Item 4 decision tree appear in the Main Module 3 Web Page).
5. Rerun the data analysis regression tool for your "best" model, and include and be able to describe or interpret the following printouts:

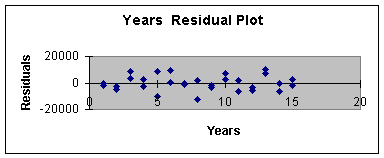

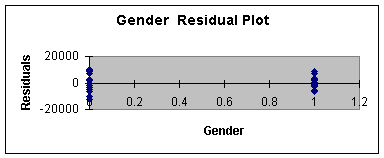

· Residual plot :
o QN (Model 4 or 7)
o QL Model 6)
o QN and QL (Models 1, 2, 3, or 5)
· Normal probability plot (for all Models)

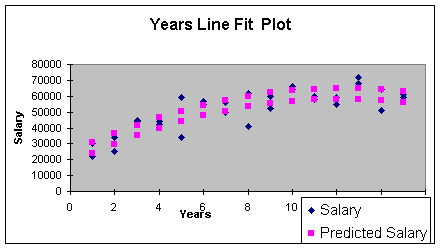

· Fitted Line Plot:
o QN2 (Models 1, 3, 4)
o QN (Models 1, 2, 3, 4, 5, 7)
o QL (Models 1, 2, 3, 5, 6)
Example
One: Drug Effectiveness
Item 1: Enter Data
I am going to use as my first example, the study introduced at the end of
Module Notes 3.2: the new drug effectiveness study data.
This example concerned an experiment done by an over-the-counter drug
manufacturer interested in testing a new drug. This drug is designed to be
effective in curing an illness most commonly found in older patients. The
dependent variable is Effect, which stands for the effectiveness of recovery
from a certain illness. It is measured on a scale of 0 to 100 (100 is more
effective). The quantitative independent variable is age, and the qualitative
independent variable is whether or not the new drug was present in the experiment
(drug = 0) or absent (subjects took the old drug, drug = 1) in the experiment.
Note that half of the subjects were given the new drug, and half were given the
old drug (they were not told which one to avoid bias in the experiment).
Worksheet 3.3.1 shows the data entry (Item 1, Assignment 1).
Worksheet 3.3.1
|
Age |
Age^2 |
Drug |
Age*Drug |
Effect |
|
21 |
441 |
1 |
21 |
56 |
|
19 |
361 |
0 |
0 |
28 |
|
28 |
784 |
1 |
28 |
55 |
|
23 |
529 |
0 |
0 |
25 |
|
67 |
4489 |
0 |
0 |
71 |
|
33 |
1089 |
1 |
33 |
63 |
|
33 |
1089 |
1 |
33 |
52 |
|
56 |
3136 |
0 |
0 |
62 |
|
45 |
2025 |
0 |
0 |
50 |
|
38 |
1444 |
1 |
38 |
58 |
|
37 |
1369 |
0 |
0 |
46 |
|
27 |
729 |
0 |
0 |
34 |
|
43 |
1849 |
1 |
43 |
65 |
|
47 |
2209 |
0 |
0 |
59 |
|
48 |
2304 |
1 |
48 |
64 |
|
53 |
2809 |
1 |
53 |
61 |
|
29 |
841 |
0 |
0 |
36 |
|
53 |
2809 |
1 |
53 |
69 |
|
58 |
3364 |
1 |
58 |
73 |
|
63 |
3969 |
1 |
63 |
62 |
|
59 |
3481 |
0 |
0 |
71 |
|
51 |
2601 |
0 |
0 |
62 |
|
67 |
4489 |
1 |
67 |
70 |
|
63 |
3969 |
0 |
0 |
71 |
I entered the quantitative X, Age, in the first column. The second column is
the curvature term which is constructed by squaring each value in the Age
Column. The third column is the qualitative X, drug (0 = new drug was present,
1 = new drug was absent). The fourth column includes the interaction component,
which is obtained by multiplying the respective cells in the Age Column times
the cells in the Drug Column. I titled this Age*Drug to represent the
multiplication. Finally, the last column contains the quantitative Y variable.
You are free to set up your data as you wish, the above format seems to be most
efficient of the various formats I tried. Your requirement is similar to the
example above: one quantitative X, one qualitative X, and a quantitative Y.
Curvature and interaction are constructed.
Item 2: Build Model 1
Item 2, Assignment 3, requires that you hypothesize and run a full model with
the quantitative and qualitative variables, curvature and interaction.
Worksheet 3.3.2 illustrates the regression summary from using the Regression
Data Analysis Add In.
Worksheet 3.3.2
|
SUMMARY OUTPUT |
||||||
|
Regression Statistics |
||||||
|
Multiple R |
0.967077619 |
|||||
|
R Square |
0.935239122 |
|||||
|
Adjusted R Square |
0.921605253 |
|||||
|
Standard Error |
3.888421114 |
|||||
|
Observations |
24 |
|||||
|
ANOVA |
||||||
|
df |
SS |
MS |
F |
Significance F |
||
|
Regression |
4 |
4148.681777 |
1037.170444 |
68.59675111 |
5.04008E-11 |
|
|
Residual |
19 |
287.2765564 |
15.11981876 |
|||
|
Total |
23 |
4435.958333 |
||||
|
Coefficients |
Standard Error |
t Stat |
P-value |
Lower 95% |
Upper 95% |
|
|
Intercept |
-0.05567568 |
7.441829412 |
-0.007481451 |
0.994108718 |
-15.63160849 |
15.52025713 |
|
Age |
1.372995238 |
0.36799282 |
3.731038117 |
0.001415911 |
0.602777175 |
2.143213302 |
|
Age^2 |
-0.003978725 |
0.004228799 |
-0.940864063 |
0.358583821 |
-0.012829706 |
0.004872256 |
|
Drug |
40.47038187 |
5.11462738 |
7.912674543 |
1.97194E-07 |
29.7653404 |
51.17542333 |
|
Age*Drug |
-0.688569563 |
0.109012691 |
-6.316416545 |
4.6164E-06 |
-0.916735817 |
-0.460403308 |
Note: I do not recommend selecting any of the output options at this point. The
Regression Summary is all that we need for the various component test
procedures in the decision tree. Once we have our best model, we can rerun it
and produce all of the output options such as residual, normal and line fit
plots.
First Test: Curvature
Item 4, Assignment 3, requires that we test curvature. This is where the
decision tree begins. Since we have the full Model 1 constructed, we can easily
test for curvature by comparing Model 1 to Model 2. Model 2 is just like Model
1 except it doesn't have curvature.
The slope coefficient that we need to use to test curvature is B2.
The null and alternate hypotheses to test curvature are:
H0:
B2 = 0 (curvature is not important)
Ha: B2 =/= 0 (curvature is important)
The hypothesized model associated with the null hypothesis at this point in the decision tree is Model 2, and the hypothesized model associated with the alternative hypothesis is Model 1:
Model 2 Associates with H0: Effect = B0 + B1 Age + B3 Drug +
B4 Age*Drug
Model 1 Associates with H1: Effect = B0 + B1 Age + B2 Age2 +
B3Drug + B4 Age*Drug
Since the p-value (0.35858)
for the curvature term (Age^2) in Worksheet 3.3.2 is greater than alpha of
0.01, do not reject the null hypothesis, and conclude that curvature is not
important. This means that Model 2 is a better predictor than Model 1. We need
to rerun the regression without the curvature term, and next test interaction.
This is noted in Decision Tree Action B.
Second Test: Interaction
To create a sample regression model for hypothesized Model 2, I remove the
curvature column, and redo the regression analysis. The practice I follow is to
make a copy of the original data to another worksheet tab or area on the
current tab, and then delete the curvature column (or curvature data if I need
information below the data in that column). If you delete the data, you need to
shift the remaining data (qualitative, interaction and Y entries) to the left
to keep all of the X variable columns adjacent to each other. The result is
shown in Worksheet 3.3.3
Worksheet 3.3.3
|
Age |
Drug |
Age*Drug |
Effect |
|
21 |
1 |
21 |
56 |
|
19 |
0 |
0 |
28 |
|
28 |
1 |
28 |
55 |
|
23 |
0 |
0 |
25 |
|
67 |
0 |
0 |
71 |
|
33 |
1 |
33 |
63 |
|
33 |
1 |
33 |
52 |
|
56 |
0 |
0 |
62 |
|
45 |
0 |
0 |
50 |
|
38 |
1 |
38 |
58 |
|
37 |
0 |
0 |
46 |
|
27 |
0 |
0 |
34 |
|
43 |
1 |
43 |
65 |
|
47 |
0 |
0 |
59 |
|
48 |
1 |
48 |
64 |
|
53 |
1 |
53 |
61 |
|
29 |
0 |
0 |
36 |
|
53 |
1 |
53 |
69 |
|
58 |
1 |
58 |
73 |
|
63 |
1 |
63 |
62 |
|
59 |
0 |
0 |
71 |
|
51 |
0 |
0 |
62 |
|
67 |
1 |
67 |
70 |
|
63 |
0 |
0 |
71 |
Next I run the regression
for Model 2. This is shown in Worksheet 3.3.4.
Worksheet 3.3.4
|
SUMMARY OUTPUT |
||||||
|
Regression Statistics |
||||||
|
Multiple R |
0.96551637 |
|||||
|
R Square |
0.932221861 |
|||||
|
Adjusted R Square |
0.92205514 |
|||||
|
Standard Error |
3.87724774 |
|||||
|
Observations |
24 |
|||||
|
ANOVA |
||||||
|
df |
SS |
MS |
F |
Significance F |
||
|
Regression |
3 |
4135.297333 |
1378.432444 |
91.69346477 |
7.33335E-12 |
|
|
Residual |
20 |
300.6610008 |
15.03305004 |
|||
|
Total |
23 |
4435.958333 |
||||
|
Coefficients |
Standard Error |
t Stat |
P-value |
Lower 95% |
Upper 95% |
|
|
Intercept |
6.211381194 |
3.308965648 |
1.877136802 |
0.075164685 |
-0.690996989 |
13.11375938 |
|
Age |
1.033390871 |
0.071447502 |
14.46363902 |
4.70078E-12 |
0.884354064 |
1.182427679 |
|
Drug |
41.30421013 |
5.022786373 |
8.223365889 |
7.5975E-08 |
30.82686622 |
51.78155404 |
|
Age*Drug |
-0.702883614 |
0.10763568 |
-6.530210205 |
2.30245E-06 |
-0.927407604 |
-0.478359625 |
Step B of the Decision
Tree shows that to test interaction, we test Model 2 against Model 5. Similar to
before, the only difference between these two Models is that Model 2 includes
interaction, Model 5 does not. The slope coefficient associated with
interaction is B4. The null and alternative hypotheses to test
interaction are:
H0: B4 = 0 (interaction is not important)
Ha: B4 =/= 0 (interaction is important)
The hypothesized model associated with the null hypothesis at this point in the decision tree is Model 5, and the hypothesized model associated with the alternative hypothesis is Model 2. Note that neither model has the curvature term since we already determined that curvature was not important and removed it.
Model 5 Associates with H0: Effect = B0 + B1 Age + B3 Drug
Model 2 Associates with H1: Effect = B0 + B1 Age + B3Drug
+ B4 Age*Drug
Since the p-value (2.3E-06) for the interaction term (Age*Drug) in Worksheet 3.3.3 is less than alpha of 0.01, reject the null hypothesis, and conclude that interaction is important. This means that Model 2 is a better predictor than Model 5. Note in the decision tree action B (1), that if interaction is important at this point in the tree, we stop, Model 2 is our best model. You see, we do not need to test if the quantitative or if the qualitative variables are important, since if interaction is important, we need both the quantitative and qualitative variables to create it (the interaction).
Item 5: Assignment 3
Now that you have
your best model, rerun the regression and select all of the output options of
the regression add in dialog box (residual, normal, and line fit plots and
standardized residuals). You are now ready to interpret the regression
coefficients, test practical utility of your model, test statistical utility of
your model, evaluate the assumptions and make a prediction.
The Sample Regression Equation and Interpretation of Coefficients
Worksheet 3.3.4 provides the coefficients for the sample regression
equation:
Eq. 3.3.1: Effect = 6.2 + 1.03 Age + 41.3 Drug - 0.7Age*Drug
Since this is an interaction model, we have two interpretations for the slope and intercept. For the case where drug = 0 (new drug), the equation becomes:
Eq. 3.3.2: Effect = 6.2 + 1.03 Age
The intercept means that the
Effectiveness score would be 6.2 for a person of age equals zero. Since there
were no subjects at that age, the intercept would not have practical meaning.
The slope suggests that when age increases by one, the effectiveness score
increases by 1.03 (again, holding the qualitative variable constant at drug =
0).
For the case where drug = 1 (old drug), the equation becomes:
Eq. 3.3.3: Effect = 47.5 + 0.33 Age
The intercept now means that
Effectiveness score would be 47.5 for a person of age equals zero. Since there
were no subjects at that age, the intercept would not have practical meaning.
The slope suggests that when age increases by one, the effectiveness score
increases by 0.33 (again, holding the qualitative variable constant at drug =
1).
Practical Utility
The Adjusted R Square for this multiple regression model is shown as 0.92.
The interpretation is that age and drug type explain 92% of the variation in
effectiveness score. This is a high degree of variation explained. The Standard
Error of the Model is 3.877, meaning that 95% of the actual effectiveness
scores would be within +/- 2 * 3.877 = 7.75) of predicted effectiveness scores.
This appears to be a relatively low standard error. The model is judged to be
practically useful.
Statistical Utility
The following hypothesis test is used to determine model utility.
H0: B1 = B3 = B4 = 0 (regression model is not statistically useful)
Ha: At least one B =/= 0 (regression model is statistically useful)
Since the p-value (7.33E-12)
for the F statistic in the Regression Row of the ANOVA table of Worksheet 3.3.4
is less than alpha of 0.01, reject the null hypothesis and conclude that the
model is statistically useful.
Assumptions
I examined the standardized residuals and the normal probability plot and
found no outliers, indicating that the assumption that the error terms are
normally distributed around a mean of zero can be considered met. To determine
if we meet the assumptions that the error has constant variance and is
independent, we examine the residual plots. There will be two plots since there
are two independent variables. Worksheet 3.3.5 provides the residual plot Age,
and Worksheet 3.3.6 provides the residual plot for Drug.
Worksheet 3.3.5
Worksheet 3.3.6
The plot of residual or errors against age shows fairly constant variance for
all values of Age. Likewise, the errors plotted against drug shows about the
same spread for drug = 0 and drug = 1.
Making a Prediction
To predict the effectiveness score for a new drug (drug = 0) administered a
63 year old, we first obtain the point estimate:
Eq. 3.3.4: Effect = 6.2 + 1.03Age + 41.3 Drug - 0.7 Age*Drug;
Effect
= 6.2 + 1.03 (63) + 41.3 (0) -0.7 (63*0);
Effect = 6.2 + 64.9 = 71.1
Next, incorporate two times the standard error to get the 95% prediction interval:
Eq. 3.3.5: Effect = 71.1 +/- (2 * 3.877) = 71.1 +/- 7.75
We are 95% confident that a
person 63 years of age, using the new drug, will have an effectiveness score
between 63.35 and 78.85.
Example
Two: Salary Study
Item 1: Enter Data
The second model building example concerns the Salary Study that was
introduced in Module Notes 3.2 to illustrate the concepts of curvature, dummy
variable, and interaction. I will use that example here to demonstrate how to
determine the "best" model - that is, what combination of the the
independent variables (quantitative variable, qualitative variable, curvature,
and interaction) would best predict faculty salary.
The data that had to be collected includes faculty salary (dependent variable,
Y), years of experience (quantitative independent variable, X1), and
gender (qualitative independent variable, X2). The data that is
created is for the curvature and interaction terms shown in Worksheet 3.3.7.
Worksheet 3.3.7
|
Years |
Years^2 |
Gender |
Yrs*Gndr |
Salary |
|
13 |
169 |
1 |
13 |
72000 |
|
13 |
169 |
0 |
0 |
68000 |
|
10 |
100 |
1 |
10 |
66000 |
|
10 |
100 |
0 |
0 |
64000 |
|
14 |
196 |
1 |
14 |
64000 |
|
8 |
64 |
1 |
8 |
62000 |
|
15 |
225 |
1 |
15 |
61000 |
|
11 |
121 |
0 |
0 |
60000 |
|
9 |
81 |
1 |
9 |
60000 |
|
15 |
225 |
0 |
0 |
59000 |
|
5 |
25 |
1 |
5 |
59000 |
|
12 |
144 |
1 |
12 |
59000 |
|
11 |
121 |
1 |
11 |
58000 |
|
6 |
36 |
0 |
0 |
57000 |
|
7 |
49 |
1 |
7 |
56000 |
|
12 |
144 |
0 |
0 |
55000 |
|
6 |
36 |
1 |
6 |
55000 |
|
9 |
81 |
0 |
0 |
52000 |
|
14 |
196 |
0 |
0 |
51000 |
|
7 |
49 |
0 |
0 |
50000 |
|
3 |
9 |
1 |
3 |
45000 |
|
3 |
9 |
0 |
0 |
44000 |
|
4 |
16 |
1 |
4 |
44000 |
|
4 |
16 |
0 |
0 |
42000 |
|
8 |
64 |
0 |
0 |
41000 |
|
5 |
25 |
0 |
0 |
34000 |
|
2 |
4 |
1 |
2 |
34000 |
|
1 |
1 |
1 |
1 |
30000 |
|
2 |
4 |
0 |
0 |
25000 |
|
1 |
1 |
0 |
0 |
22000 |
Item 2: Build Model 1
Worksheet 3.3.8 illustrates the regression summary from using the
Regression Analysis Data Analysis Add In.
Worksheet 3.3.8
|
SUMMARY OUTPUT |
||||||
|
Regression Statistics |
||||||
|
Multiple R |
0.901285985 |
|||||
|
R Square |
0.812316427 |
|||||
|
Adjusted R Square |
0.782287055 |
|||||
|
Standard Error |
6034.722055 |
|||||
|
Observations |
30 |
|||||
|
ANOVA |
||||||
|
df |
SS |
MS |
F |
Significance F |
||
|
Regression |
4 |
3940519910 |
985129977.4 |
27.05073003 |
9.23118E-09 |
|
|
Residual |
25 |
910446757.2 |
36417870.29 |
|||
|
Total |
29 |
4850966667 |
||||
|
Coefficients |
Standard Error |
t Stat |
P-value |
Lower 95% |
Upper 95% |
|
|
Intercept |
16652.01465 |
4452.309573 |
3.740084642 |
0.000962747 |
7482.317863 |
25821.71144 |
|
Years |
6723.028442 |
1122.510607 |
5.98927832 |
2.96435E-06 |
4411.176191 |
9034.880693 |
|
Years^2 |
-268.1803491 |
66.43741887 |
-4.036585912 |
0.000450987 |
-405.0106787 |
-131.3500194 |
|
Gender |
8619.047619 |
4637.228193 |
1.85866368 |
0.074886968 |
-931.4959304 |
18169.59117 |
|
Yrs*Gndr |
-235.7142857 |
510.0271021 |
-0.462160314 |
0.647963296 |
-1286.13403 |
814.7054581 |
As with Example 1, I did not
select any of the output Residual or Normal Probability Output options at this
time since I am just building the model. Once we have the best model, we can
rerun it and produce all of the output options at that time.
First Test: Curvature
Following the decision tree, our first test on Model 1, the full model that
includes all of the hypothesized components, is for curvature.
The slope coefficient that we need to use to test curvature is B2.
The null and alternate hypotheses to test curvature are:
H0:
B2 = 0 (curvature is not important)
Ha: B2 =/= 0 (curvature is important)
The hypothesized model associated with the null hypothesis at this point in the decision tree is Model 2, and the hypothesized model associated with the alternative hypothesis is Model 1:
Model 2 Associates with H0: Salary= B0 + B1 Years + B3 Gender +
B4 Yrs*Gndr
Model 1 Associates with H1: Salary = B0 + B1 Years + B2 Years2 +
B3 Gender + B4 Yrs*Gndr
Since the p-value (0.00045) for
the curvature term (Years^2) in Worksheet 3.3.8 is less than alpha of 0.01,
reject the null hypothesis, and conclude that curvature is important. This
means that Model 1 is a better predictor than Model 2, and at this point, we
keep Model 1 as our best model so far. We are at Item 4, A. in the decision
tree. Note that the decision tree now tells us to test interaction by examining
Model 1 vs. Model 3.
Second Test: Interaction
The only difference between Model 1 and Model 3 is that Model 1 includes
interaction, Model 3 does not. Note that both models include curvature since we
previously determined that curvature is important in predicting salary. The
slope coefficient associated with interaction is B4. The null and
alternative hypotheses to test interaction are:
H0: B4 = 0 (interaction is not important)
Ha: B4 =/= 0 (interaction is important)
The hypothesized model associated with the null hypothesis at this point in the decision tree is Model 3, and the hypothesized model associated with the alternative hypothesis is Model 1. Note that both models include curvature.
Model 3 Associates with H0: Salary= B0 + B1 Years + B2 Years2 +
B3 Gender
Model 1 Associates with H1: Salary= B0 + B1 Years + B2 Years2 +
B3 Gender + B4 Yrs*Gndr
Since the p-value (0.647963)
for the interaction term (Yrs*Gndr) in Worksheet 3.3.8 is greater than alpha of
0.01, do not reject the null hypothesis, and conclude that interaction is not
important. This means that Model 3 is a better predictor than Model 1. Note in
the decision tree Item A (2), that if interaction is not important, build Model
3 and test for the importance of the qualitative variable. We need to rerun the
regression without the interaction term to create Model 3.
Third Test: Qualitative Variable
To build Model 3, I remove the interaction column and redo the regression
analysis. The result is shown in Worksheet 3.3.9.
Worksheet 3.3.9
|
Years |
Years^2 |
Gender |
Salary |
|
13 |
169 |
1 |
72000 |
|
13 |
169 |
0 |
68000 |
|
10 |
100 |
1 |
66000 |
|
10 |
100 |
0 |
64000 |
|
14 |
196 |
1 |
64000 |
|
8 |
64 |
1 |
62000 |
|
15 |
225 |
1 |
61000 |
|
11 |
121 |
0 |
60000 |
|
9 |
81 |
1 |
60000 |
|
15 |
225 |
0 |
59000 |
|
5 |
25 |
1 |
59000 |
|
12 |
144 |
1 |
59000 |
|
11 |
121 |
1 |
58000 |
|
6 |
36 |
0 |
57000 |
|
7 |
49 |
1 |
56000 |
|
12 |
144 |
0 |
55000 |
|
6 |
36 |
1 |
55000 |
|
9 |
81 |
0 |
52000 |
|
14 |
196 |
0 |
51000 |
|
7 |
49 |
0 |
50000 |
|
3 |
9 |
1 |
45000 |
|
3 |
9 |
0 |
44000 |
|
4 |
16 |
1 |
44000 |
|
4 |
16 |
0 |
42000 |
|
8 |
64 |
0 |
41000 |
|
5 |
25 |
0 |
34000 |
|
2 |
4 |
1 |
34000 |
|
1 |
1 |
1 |
30000 |
|
2 |
4 |
0 |
25000 |
|
1 |
1 |
0 |
22000 |
Next, I run the regression for Model 3. This is shown in Worksheet 3.3.10.
Worksheet 3.3.10
|
SUMMARY OUTPUT |
||||||
|
Regression Statistics |
||||||
|
Multiple R |
0.900395978 |
|||||
|
R Square |
0.810712917 |
|||||
|
Adjusted R Square |
0.7888721 |
|||||
|
Standard Error |
5942.756834 |
|||||
|
Observations |
30 |
|||||
|
ANOVA |
||||||
|
df |
SS |
MS |
F |
Significance F |
||
|
Regression |
3 |
3932741338 |
1310913779 |
37.11916585 |
1.52134E-09 |
|
|
Residual |
26 |
918225328.6 |
35316358.79 |
|||
|
Total |
29 |
4850966667 |
||||
|
Coefficients |
Standard Error |
t Stat |
P-value |
Lower 95% |
Upper 95% |
|
|
Intercept |
17594.87179 |
3897.092239 |
4.514871785 |
0.000120961 |
9584.278723 |
25605.46487 |
|
Years |
6605.171299 |
1076.50067 |
6.135780016 |
1.73624E-06 |
4392.391031 |
8817.951568 |
|
Years^2 |
-268.1803491 |
65.42495602 |
-4.099052799 |
0.000360926 |
-402.6633603 |
-133.6973378 |
|
Gender |
6733.333333 |
2169.987981 |
3.102935773 |
0.004577524 |
2272.856233 |
11193.81043 |
To test for the
importance of the qualitative variable at this point in the decision tree process
(Item 4.A.(2).), we compare Model 3 with Model 4. The only difference between
these two models is that Model 3 includes the qualitative variable, Model 4
does not. Note that both models include curvature, and neither model includes
interaction, which follows from the testing done so far. The slope coefficient
associated with the qualitative variable is B3. The null and
alternative hypotheses to test for the qualitative variable are:
H0:
B3 = 0 (qualitative variable, gender, is not important)
Ha: B3 =/= 0 (gender is important in predicting salary)
The hypothesized model associated with the null hypothesis at this point in the decision tree is Model 4, and the hypothesized model associated with the alternative hypothesis is Model 3:
Model 4 Associates with H0: Salary= B0 + B1 Years + B2 Years2
Model 3 Associates with H1: Salary = B0 + B1 Years + B2 Years2 +
B3 Gender
Since the p-value (0.004578)
for the qualitative term (Gender) in Worksheet 3.3.10 is less than alpha of
0.01, reject the null hypothesis, and conclude that gender is important in
predicting salary. This means that Model 3 is a better predictor than Model 4,
and at this point, we keep Model 3 as our best model so far. We are at Item 4,
A. (2).a. in the decision tree. Note that the decision tree now tells us to
stop, we have arrived at our best model. Since curvature is important, there is
no need to test the quantitative variable, Years, since Years is needed to make
the curvature term. That is why the decision tree said to stop.
Item 5: Assignment 3
Now that we have the best model, rerun the regression and select all of the
output options of the Regression Add In dialog box (residual, normal and line
fit plots and standardized residuals). You are now ready to interpret the
regression coefficients, test practical utility of your model, test statistical
utility of your model, evaluate the assumptions, and make a prediction.
The Sample Regression Equation and Interpretation of the Coefficients
Worksheet 3.3.10 provides the coefficients for the sample regression
equation:
Eq. 3.3.6: Salary = 17595 + 6605 Years - 268 Years2 +
6733 Gender
Since this model includes gender, we will have two equations, one for male faculty members (X2 = 1) and one for female faculty members (X2 = 0). The equation for male faculty members is:
Eq. 3.3.7: Salary = 24328 + 6605 Years - 268 Years2
The equation for female faculty members is:
Eq. 3.3.8: Salary = 17595 + 6605 Years - 268 Years2
Thus, the slope coefficient
on gender, B3 = 6733 in Equation 3.3.6, is the average difference in
salary between males and females: males make $6,733 average more than females.
This is a case of gender discrimination since the faculty were similar in all
other regards.
The other slope of interest to us is B2, the slope on the curvature
term. Its value is -268. About all that we can say from a management
interpretation, is that the negative term means we have negative or downward
curvature. This means that as experience increases, salary increases but at a decreasing
rate. A glimpse at the line fit plot illustrates the above discussion. This
plot is shown in Worksheet 3.3.11. Note the two curves, the top being the
predicted salary curve for male faculty, the bottom curve for female faculty.
The salary curve is typical in a public university as faculty get promoted to
associate and then full professor by the 10 - 15 year point, then follow-on
raises follow small incremental state yearly increases. What should not be
typical is the two curves as that is discrimination if all other factors are
the same.
Worksheet 3.3.11
Practical Utility
The adjusted R Square
is 0.81 meaning that years experience and gender explain 81% of the sample
variation in salary in this curvilinear model. This is a high degree of
explained variation. The Standard Error of the Model is $5,943. which is
interpreted to be 95% of the actual salaries will be within +/- 2 * $5,943 or
+/- $11,846 of the predicted salaries. This error is obviously too high for
prediction purposes, but if the model was to be used solely to understand the
discrimination effect, it might be acceptable. I should add a caution here. You
may have noticed that there were just 30 observations in this example. There
should have been a minimum of 50. If we used the larger minimum number of
observations, the standard error should improve (remember standard errors and
standard deviations reduce as you increase sample size to the minimum
required).
Statistical Utility
The following hypothesis test is used to determine model utility.
H0:
B1 = B2 = B3 = 0 (regression model is not
statistically useful)
Ha: At least one B =/= 0 (model is statistically useful)
Since the p-value (1.52E-09)
for the F statistic in the Regression Row of the ANOVA table of Worksheet
3.3.10 is less than alpha of 0.01, reject the null hypothesis and conclude that
the model is statistically useful.
Assumptions
I examined the standardized residuals and the normal probability plot and found
no outliers, indicating that the assumption that the error terms are normally
distributed around a mean of zero can be considered met. To determine if we
meet the assumptions that the error has constant variance and is independent,
we examine the residual plots.
There will be two plots of interest, the plot for the quantitative X and the
plot for the qualitative X. You will also get a plot for the curvature term but
this is a derived variable and may be ignored. Assignment 3, Step 5, in the
Main Module 3 Notes and repeated at the beginning of this note set states
exactly what residual plots you need according to which model number is your
best model. Worksheet 3.3.12 provides the residual plot for Years, and
Worksheet 3.3.13 provides the residual plot for gender.
Worksheet 3.3.12
Worksheet 3.3.13
The Years Residual Plot shows very little error for 1, 2, 14, and 15 years of
experience compared to 5 and 7. As well, the male gender residual is smaller
than the female residual. This is a second indication of a small sample size
problem. A larger sample size should even out the distribution of the error for
all values of the independent variables.
Making a Prediction
To predict the salary for the first female faculty member in our data set
(13 years experience), we first obtain the point estimate:
Eq. 3.3.9: Salary = 17595 + 6605 Years - 268 Years2 +
6733 Gender;
Salary = 17595 + 6605 (13) - 268 (13)2 +
6733 (0);
Salary = $58,168
Next, incorporate the standard error to get a 95% prediction interval:
Eq. 3.3.10: Salary = 58168 +/- (2 * 5943) = 58168 +/- 11886.
So, we are 95% confident that
a female faculty member with 13 years experience will make between $46,282 and
$70,054. As indicated earlier, that is a wide range for prediction purposes.
Perhaps more data or stratification of the faculty by years of experience would
produce a model with less error.
The error of prediction for this particular observation is actual minus
predicted which is 68,000 - 58,186 or $9,814.
Example
Three: External Hour/Asset Study
For the last example,
I picked a problem where I knew there was no curvature, interaction or
significant quantitative variable - just a simple linear regression. This is
the example I used for Module Notes 2.1 and 2.2 .
Item 1: Enter Data
The data for this problem involves a quantitative independent variable,
Assets in thousands of dollars; a qualitative independent variable, years of
experience (Exp) of the audit team leader; and the dependent variable, External
Hours to do an audit. Please note that experience was actually a quantitative
variable. I made it into a dummy variable by noting that 1 = team leader with
years of experience greater than 5, and 0 = years of experience less than or
equal to 5. You can make quantitative variables dummy variables, but not the
other way around. Worksheet 3.3.14 provides the data input.
Worksheet 3.3.14
|
Assets |
Assets^2 |
Exp |
Asset*Exp |
ExtHours |
|
3200 |
10240000 |
1 |
3200 |
700 |
|
3000 |
9000000 |
1 |
3000 |
900 |
|
3500 |
12250000 |
1 |
3500 |
800 |
|
4000 |
16000000 |
1 |
4000 |
900 |
|
4700 |
22090000 |
1 |
4700 |
880 |
|
5000 |
25000000 |
1 |
5000 |
850 |
|
6000 |
36000000 |
0 |
0 |
1000 |
|
5500 |
30250000 |
0 |
0 |
1000 |
|
6500 |
42250000 |
1 |
6500 |
950 |
|
6500 |
42250000 |
0 |
0 |
1100 |
|
7000 |
49000000 |
0 |
0 |
1200 |
|
4500 |
20250000 |
1 |
4500 |
830 |
|
7500 |
56250000 |
0 |
0 |
1100 |
|
5750 |
33062500 |
1 |
5750 |
1100 |
|
7250 |
52562500 |
0 |
0 |
1160 |
|
8000 |
64000000 |
1 |
8000 |
1120 |
|
8000 |
64000000 |
0 |
0 |
1300 |
|
8500 |
72250000 |
0 |
0 |
1400 |
|
9000 |
81000000 |
1 |
9000 |
1500 |
|
8500 |
72250000 |
0 |
0 |
1200 |
Item 2: Build Model 1
Worksheet 3.3.15
illustrates the regression summary from using the Regression Analysis Data
Analysis Add In.
Worksheet 3.3.15
|
SUMMARY OUTPUT |
||||||
|
Regression Statistics |
||||||
|
Multiple R |
0.927239544 |
|||||
|
R Square |
0.859773172 |
|||||
|
Adjusted R Square |
0.822379352 |
|||||
|
Standard Error |
87.51652745 |
|||||
|
Observations |
20 |
|||||
|
ANOVA |
||||||
|
df |
SS |
MS |
F |
Significance F |
||
|
Regression |
4 |
704407.8613 |
176101.9653 |
22.99239 |
2.97E-06 |
|
|
Residual |
15 |
114887.1387 |
7659.142577 |
|||
|
Total |
19 |
819295 |
||||
|
Coefficients |
Standard Error |
t Stat |
P-value |
Lower 95% |
Upper 95% |
|
|
Intercept |
1214.943829 |
443.3511933 |
2.740364405 |
0.015177 |
269.9625 |
2159.925 |
|
Assets |
-0.129373898 |
0.115830849 |
-1.116920912 |
0.2816 |
-0.376262 |
0.117514 |
|
Assets^2 |
1.66433E-05 |
7.90665E-06 |
2.104978726 |
0.05256 |
-2.09E-07 |
3.35E-05 |
|
Exp |
-248.8972384 |
268.8201043 |
-0.925887739 |
0.369162 |
-821.8741 |
324.0796 |
|
Asset*Exp |
0.030084261 |
0.037500954 |
0.802226542 |
0.434948 |
-0.049847 |
0.110016 |
First Test: Curvature
Following the decision
tree, our first test on Model 1 is for curvature. The slope coefficient that we
need to use to test curvature is B2. The null and alternative
hypotheses to test curvature are:
H0: B2 = 0 (curvature is not important)
Ha: B2 =/= 0 (curvature is important)
The hypothesized model associated with the null hypothesis at this point in the decision tree is Model 2, and the hypothesized model associated with the alternative hypothesis is Model 1:
Model 2 Associates with H0: ExtHours = B0 + B1 Assets +
B3 Exp + B4 Assets*Exp
Model 1 Associates with H1: ExtHours = B0 + B1 Assets +
B2 Assets2 + B3 Exp + B4 Assets*Exp
Since the p-value (0.05256)
for the curvature term (Years^2) in Worksheet 3.3.14 is greater than 0.01, we
fail to reject the null hypothesis and conclude that curvature is not
important. At this point, Model 2 is our best model - we are at Item 4.B. in
the decision tree. We need to remove curvature from the data set, build Model
2, and prepare for the interaction test.
Second Test: Interaction
Worksheet 3.3.16 illustrates the data with the curvature term removed.
Worksheet 3.3.16
|
Assets |
Exp |
Asset*Exp |
ExtHours |
|
3200 |
1 |
3200 |
700 |
|
3000 |
1 |
3000 |
900 |
|
3500 |
1 |
3500 |
800 |
|
4000 |
1 |
4000 |
900 |
|
4700 |
1 |
4700 |
880 |
|
5000 |
1 |
5000 |
850 |
|
6000 |
0 |
0 |
1000 |
|
5500 |
0 |
0 |
1000 |
|
6500 |
1 |
6500 |
950 |
|
6500 |
0 |
0 |
1100 |
|
7000 |
0 |
0 |
1200 |
|
4500 |
1 |
4500 |
830 |
|
7500 |
0 |
0 |
1100 |
|
5750 |
1 |
5750 |
1100 |
|
7250 |
0 |
0 |
1160 |
|
8000 |
1 |
8000 |
1120 |
|
8000 |
0 |
0 |
1300 |
|
8500 |
0 |
0 |
1400 |
|
9000 |
1 |
9000 |
1500 |
|
8500 |
0 |
0 |
1200 |
Next, I run the regression for Model 2. This is shown in Worksheet 3.3.17.
Worksheet 3.3.17
|
SUMMARY OUTPUT |
||||||
|
Regression Statistics |
||||||
|
Multiple R |
0.904627421 |
|||||
|
R Square |
0.818350771 |
|||||
|
Adjusted R Square |
0.784291541 |
|||||
|
Standard Error |
96.44438323 |
|||||
|
Observations |
20 |
|||||
|
ANOVA |
||||||
|
df |
SS |
MS |
F |
Significance F |
||
|
Regression |
3 |
670470.6951 |
223490.2317 |
24.02728 |
3.62E-06 |
|
|
Residual |
16 |
148824.3049 |
9301.519057 |
|||
|
Total |
19 |
819295 |
||||
|
Coefficients |
Standard Error |
t Stat |
P-value |
Lower 95% |
Upper 95% |
|
|
Intercept |
395.5572755 |
233.8658163 |
1.691385607 |
0.110145 |
-100.216 |
891.3305 |
|
Assets |
0.106563467 |
0.032197854 |
3.309645011 |
0.004428 |
0.038307 |
0.17482 |
|
Exp |
57.03551305 |
249.2139422 |
0.228861646 |
0.821876 |
-471.2743 |
585.3454 |
|
Asset*Exp |
-0.009424722 |
0.035777859 |
-0.263423299 |
0.795587 |
-0.08527 |
0.066421 |
Step B of the Decision Tree shows that to test interaction, we test Model 2
against Model 5. Similar to before, the only difference between these two
Models is that Model 2 includes interaction, Model 5 does not. The slope
coefficient associated with interaction is B4. The null and
alternative hypotheses to test interaction are:
H0: B4 = 0 (interaction is not important)
Ha: B4 =/= 0 (interaction is important)
The hypothesized model associated with the null hypothesis at this point in the decision tree is Model 5, and the hypothesized model associated with the alternative hypothesis is Model 2. Note that neither model has the curvature term since we already determined that curvature was not important and removed it.
Model 5 Associates with H0: ExtHours = B0 + B1 Assets + B3 Exp
Model 2 Associates with H1: ExtHours = B0 + B1 Assets + B3 Exp
+ B4 Assets*Exp
Since
the p-value (0.795587) for the interaction term (Assets*Exp) in Worksheet
3.3.17 is greater than alpha of 0.01, do not reject the null hypothesis, and
conclude that interaction is not important. This means that Model 5 is a better
predictor than Model 2. Note in the decision tree Step 4.B. (2), that we now
must build Model 5 by removing interaction from the data set. We then will test
if the qualitative dummy variable is important.
Third Test: Qualitative Variable
Worksheet 3.3.18 illustrates the data with the interaction term removed.
|
Assets |
Exp |
ExtHours |
|
3200 |
1 |
700 |
|
3000 |
1 |
900 |
|
3500 |
1 |
800 |
|
4000 |
1 |
900 |
|
4700 |
1 |
880 |
|
5000 |
1 |
850 |
|
6000 |
0 |
1000 |
|
5500 |
0 |
1000 |
|
6500 |
1 |
950 |
|
6500 |
0 |
1100 |
|
7000 |
0 |
1200 |
|
4500 |
1 |
830 |
|
7500 |
0 |
1100 |
|
5750 |
1 |
1100 |
|
7250 |
0 |
1160 |
|
8000 |
1 |
1120 |
|
8000 |
0 |
1300 |
|
8500 |
0 |
1400 |
|
9000 |
1 |
1500 |
|
8500 |
0 |
1200 |
Next, I run the regression
for Model 5. This is shown in Worksheet 3.3.19.
|
SUMMARY OUTPUT |
||||||
|
Regression Statistics |
||||||
|
Multiple R |
0.904191882 |
|||||
|
R Square |
0.81756296 |
|||||
|
Adjusted R Square |
0.796099779 |
|||||
|
Standard Error |
93.76747033 |
|||||
|
Observations |
20 |
|||||
|
ANOVA |
||||||
|
df |
SS |
MS |
F |
Significance F |
||
|
Regression |
2 |
669825.2456 |
334912.6228 |
38.09142 |
5.24E-07 |
|
|
Residual |
17 |
149469.7544 |
8792.338493 |
|||
|
Total |
19 |
819295 |
||||
|
Coefficients |
Standard Error |
t Stat |
P-value |
Lower 95% |
Upper 95% |
|
|
Intercept |
450.472272 |
103.0525338 |
4.371287684 |
0.000416 |
233.0501 |
667.8944 |
|
Assets |
0.098930495 |
0.013649179 |
7.248091277 |
1.36E-06 |
0.070133 |
0.127728 |
|
Exp |
-7.188434707 |
50.20635226 |
-0.143177793 |
0.887833 |
-113.1147 |
98.73786 |
Step 4.B.(2) of the Decision Tree shows that to test for the importance of the qualitative
variable, we test Model 5 against Model 7. Similar to before, the only
difference between these two Models is that Model 5 includes the qualitative
variable, Model 7 does not. The slope coefficient associated with the
qualitative variable is B3. The null and alternative hypotheses to
test interaction are:
H0: B3 = 0 (qualitative variable, Exp, is not important)
Ha: B3 =/= 0 (Exp is important in predicting ExtHours)
The hypothesized model associated with the null hypothesis at this point in the decision tree is Model 7, and the hypothesized model associated with the alternative hypothesis is Model 5. Note that neither model has the curvature or interaction terms since we already determined that curvature and interaction were not important and removed them from further model consideration.
Model 7 Associates with H0: ExtHours = B0 + B1 Assets
Model 5 Associates with H1: ExtHours = B0 + B1 Assets + B3 Exp
Since
the p-value (0.887833) for the qualitative variable (Exp) in Worksheet 3.3.19
is greater than alpha of 0.01, do not reject the null hypothesis, and conclude
that the qualitative variable is not important. This means that Model 7 is a
better predictor than Model 5. Note in the decision tree Step 4.B. (2) b., that
we now must build Model 7 by removing the qualitative variable from the data
set. We then build a new regression analysis and stop (this is for test
purposes - if you get to this point in the decision tree, Model 7 will be considered
your "best" model so you will have something to analyze for the exam
- this is true even if your Model 7 has no statistical utility).
Build Model 7: Simple Linear Regression Model with Quantitative Variable
Worksheet 3.3.20 provides the simple linear regression data for Model 7.
|
Assets |
ExtHours |
|
3200 |
700 |
|
3000 |
900 |
|
3500 |
800 |
|
4000 |
900 |
|
4700 |
880 |
|
5000 |
850 |
|
6000 |
1000 |
|
5500 |
1000 |
|
6500 |
950 |
|
6500 |
1100 |
|
7000 |
1200 |
|
4500 |
830 |
|
7500 |
1100 |
|
5750 |
1100 |
|
7250 |
1160 |
|
8000 |
1120 |
|
8000 |
1300 |
|
8500 |
1400 |
|
9000 |
1500 |
|
8500 |
1200 |
Next, we run the regression analysis with residual output, residual plot, line
fit plot and normal probability plot. These are used to evaluate practical
utility, statistical utility, the assumptions, and to make the prediction.
That's it. I hope these three examples provide a "feel" for model
building. You will learn more about it as you build your model for Assignment
3. Remember that these three examples illustrate a Model 2, a Model 3 and a
Model 7 - you may have one of the models not illustrated as your best model.
References:
Ken
Black. Business Statistics for Contemporary Decision Making. Fourth Edition,
Wiley. Chapter 13, 14, 15 (Advanced chapter: 16)
D. Groebner, P. Shannon, P.
Fry & K. Smith. Business Statistics:
A Decision Making Approach, Fifth Edition, Prentice Hall, Chapter 12 & 13
Sheskin, David J.
(2000). Handbook of Parametric and Non Parametric Statistical Procedures (2nd.
ed.). Boca Raton, FL: CRC Press LLC, Test 28.
Levine, D., Berenson, M. & Stephan, D. (1999). Statistics for Managers Using Microsoft Excel (2nd. ed.). Upper Saddle River, NJ: Prentice-Hall. Chapter 14 -- Multiple Regression Models
Mason, R., Lind, D. & Marchal, W. (1999). Statistical Techniques in Business and Economics (10th. ed.). Boston: Irwin McGraw Hill. Chapter 13 -- Multiple Regression and Correlation Analysis
| Return to Module Overview | Return to top of page |
