ISM 3232 - Intermediate Business Programming.

Chapter 2 Student Learning Objectives.

You should be able to:

• Describe Java's class hierarchy.
• List the 5 questions which must be answered to design a class.
• Explain the relationship between the Rectangle class and the RectangleUser class.
• Given a Java code example, identify the following components: class header, access modifier, field declaration (instance variable), initializer expression, qualified name, method definition, method header, method invocation, parameter list.
• Review and list primitive data types.
• Distinguish between primitive and reference variable types.
• Design, create, edit, compile, test, and trace the CyberPet application.
• Implement the CyberPet applet.

Objects, Interfaces, and Interaction

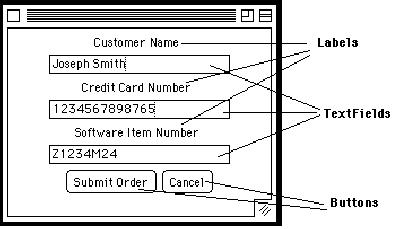

What are the objects that interact in the following example?

Objects:

• applet itself (serves as visual interface)
• orderForm
• TextFields (contain order information)
• Buttons (enable user to communicate with the order form)

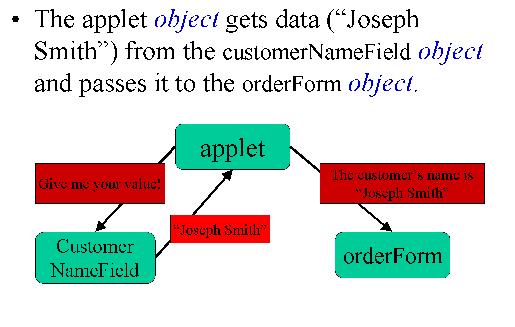

How do these objects interact?

Each object has "expertise," or functionality, in a specific, well-defined task. A TextField object stores and retrieves its own data. The applet serves as the interface between the TextFields and the orderForm by getting the data from one and passing it to the other. It represents the transaction between the customer and the sales clerk.

Java Class Hierarchy

Classification: Organizing according to similarities. Can be hierarchical. Subclasses inherit characteristics from superclasses, but add more, become more specific.

Example: automobile --> 2-door convertible --> BMW Z3

(What's another subclass of automobile? of 2-door convertible?)

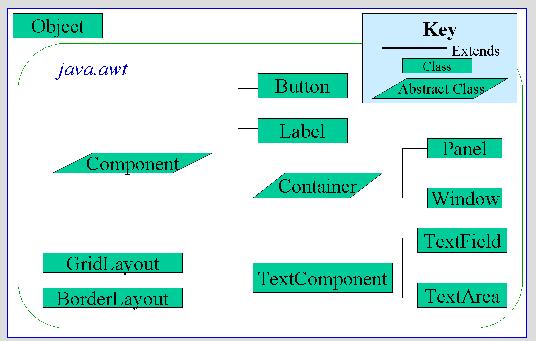

Java classes: "Object" is the superclass from which all others descend. A Component is an Object, a TextComponent is also a Component, and a TextField is also a TextComponent, a Component, and an Object. These are all defined within the java.awt class library.

Class Definition

• Programming in Java means writing class definitions (as well as using and extending existing classes) for the objects in the application.
• A class definition consists of variables (what data is stored) and methods (how the data is processed).
• A class definition serves as a template for the creation, or instantiation, of individual objects during the execution of the program.

How can we define a class? We must answer the following 5 questions:

• What tasks will the object perform?
• What information will it need to perform its tasks?
• What methods will it use to process its information?
• What information will it make public for other objects?
• What information will it hide from other objects?

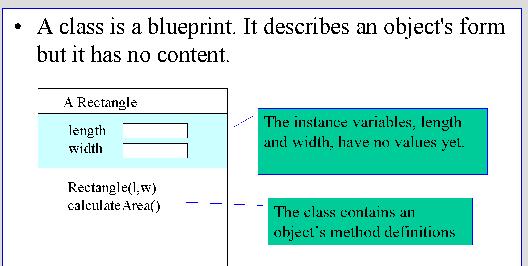

Example: The Rectangle Class Definition

Length and width are private variables because they are encapsulated within the Object and hidden from being able to be manipulated by other objects. The Rectangle method assigns initial values to length and width. The calculateArea method processes the variables and returns a result (the area of the rectangle).

Thus, when another Object interacts with the rectangle, it needs to supply input values, and expects to receive an output value, but doesn't need to know how the result was processed. That process, and the variables used in that process, are what is private and hidden. Public describes the elements of the interface (how the Object communicates with other Objects).

How do we execute a Rectangle class?

The class definition, as mentioned above, is just a template. In order to try it out, we must also define a test class with a main() method, which will create instances of the Rectangle, provide it with data, and receive results.

Example: RectangleUser class definition

Exercise:

• Which of the lines above are instantiations of new Objects?
• Which of the lines above are "method calls"?

CyberPet Example.

A reminder: to develop the CyberPet application, we need to answer the 5 questions above, plus use the Software Development Process steps from Chapter 1.

Problem Specification: The CyberPet will eat or sleep on command, and will report what it is doing.

Problem Decomposition: objects, data, methods, public, private.

Class Definition includes defining the data and methods.

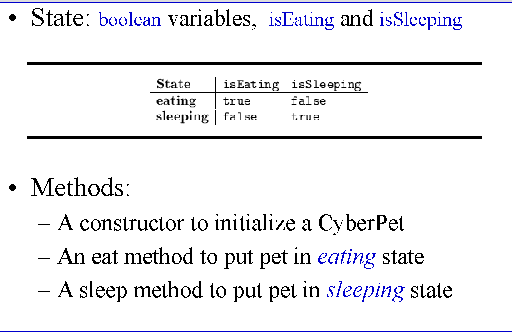

Data: Since a pet is sleeping or not, is eating or not, and cannot be doing both at the same time, we can use boolean variables to store its state.

Methods: We need 3 methods: to be able to create (construct, or instantiate) a pet, to command it to eat, and to command it to sleep.

Which aspects of the class are private, and which are public?

The methods are how the pet interacts with other objects, so must be public. The data (variables) are internal and are thus private.

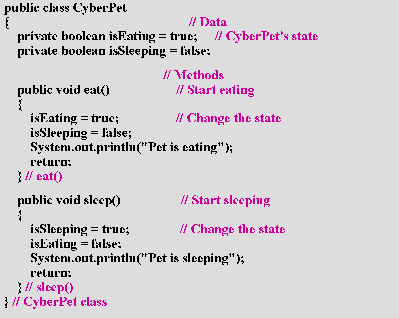

Now we have specified the design of the class and we are ready to transform it to Java code. What are the features of the Java code?

Class Header: gives the class a name (identifier), whether it's public or private, and its optional Pedigree (does it extend and/or inherit from other classes?).

In general, the format for class headers is:

ClassModifiers_opt class ClassName Pedigree_opt

Field Declaration of Instance Variables: initial state - initial values of data. Are usually declared private. Can also be protected (access allowed only by the Object's own subclasses), or, very rarely, public (access by any class).

• Class scope: once declared, these variables can be referenced anywhere in the class definition. (Other variables may be limited to local scope.)

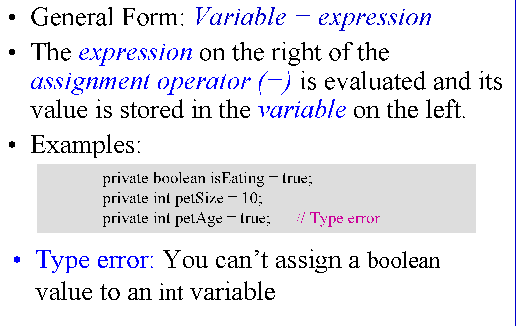

• Initializer expression:the variables are declared and given initial values in a single expression.

• Thus, a field declaration does 5 things: claims some memory, determines the type of data, associates a name with the memory, sets what type of access (public/private), and puts an initial value in memory.

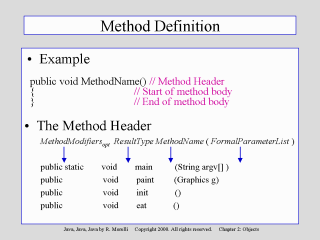

Method Definition.

A method definition includes a header and a body, which contains the instructions that are invoked or executed whenever the method is called (using the name that is defined in the header).

• Method Header: optional modifiers, result type (if any), name, optional parameter list.

A class's public methods make up its interface with other objects. A method should be declared public if it is used to communicate with other objects. If used for internal purposes only, it should be declared private.

The CyberPet's eat and sleep methods are declared public because they are used to communicate commands from other objects. They have type void because they do not return any results. They have empty parenthesis because they have no parameters (any needed information passed into the methods).

• Method Body: a block of Java statements enclosed in {}, ending in return.

Exercise: Which statements in the above example are assignment statements? Which are output statements? Which is an example of a qualified name?

Testing the Cyberpet

How can we create a CyberPet instance and give it commands? One way, similar to what we did in Chapter 1, is to create another test class, TestCyberPet.

Pseudocode for TestCyberPet

1. Declare reference variables.
2. Instantiate pet1 and pet2 by creating 2 new objects of type CyberPet.
3. Command pet1 to sleep.
4. Command pet1 to eat.
5. Command pet2 to sleep.

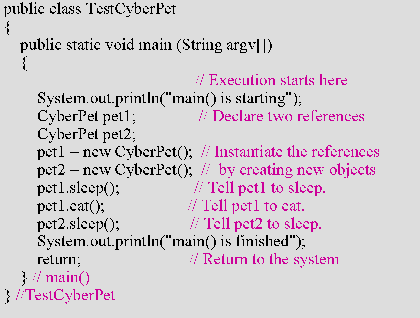

To convert to Java code, we need a class header and a main method.

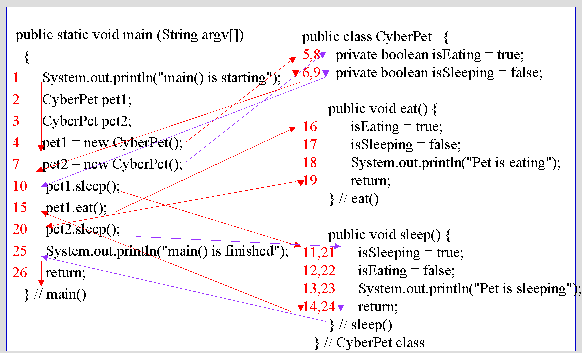

This test class creates 2 new CyberPet objects, gives them names (Pet1 and Pet2). They both have an initial state of IsEating, because the CyberPet class definition sets it this way. Then it calls the public methods, sleep and eat, to command each pet to change its initial state one or more times.

What is the output of this application, once it is compiled and run?

Output: main() is starting Pet is sleeping Pet is eating Pet is sleeping main() is finished

There are actually 5 lines of output. Why?

Because each time the eat or sleep method is called, that call produces a line of output. Note how control is transferred each time a method is invoked.

(2) Testing the CyberPet class with an Applet (instead of an application)

• The main differences are that we need an init() rather than a main() method, we need to import the java.applet class library, and we'll also need an .html file to invoke the applet from a browser.

(3) A third way of testing the CyberPet class is to incorporate the main() method directly into the class code. See the example on p. 88.

Object Oriented Design

How does CyberPet demonstrate object-oriented design principles?

• Encapsulation: The CyberPet class encapsulates a state and a set of actions.
• Information Hiding: CyberPet’s state is private.
• Interface: CyberPet’s public methods, eat() and sleep(), limit the way it can be used.
• Generality/Extensibility: We can easily extend CyberPet’s functionality, which we'll do in subsequent chapters.

Input in Java

Using the Buffered Reader class

• A "Buffer" is a place in memory where input is stored temporarily until needed by the program. The Buffered Reader class has methods that perform buffered input, such as readLine(). (Note that "system.in" is a parameter passed to the Buffered Reader constructor method telling it where it's going to be receiving input.)

BufferedReader input = new BufferedReader (new InputStreamReader(System.in));

• Readline() reads the incoming string of characters until it detects an Enter keystroke. It stores the stream in a string variable.

String inputString = input.readLine();

What if the program needs numeric input? We must convert the input stream into a numeric data type, using the Integer class methods such parseInt(). We also need to protect from erroneous input, by using IOException.

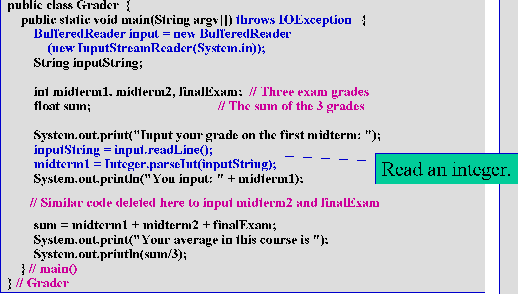

Example: Grader

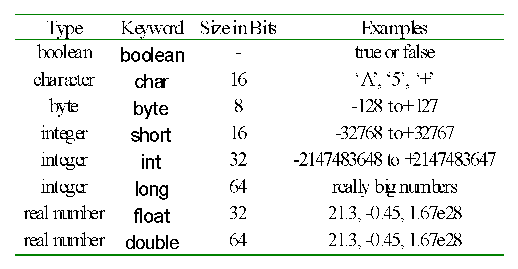

Primitive Data Types

Review: Study the Java Language Summary on pp. 90-99. Be able to recognize, define, and use the following Java features:

• class definition
• method definition
• access rules
• keywords
• identifiers
• primitive data types
• wrapper classes
• variables, expressions, and operators

Review Exercises: #5, 10, 13, 16, 18, 21.
