Introduction

• Input refers to reading data from some external source into a running program.
• Output refers to writing data from a running program to some external destination.
• A file is a collection of data stored on a disk or CD or some other storage medium.
• Files and their data persist beyond the duration of the program.

Streams and Files

• A stream is an object that delivers information to and from another object.
• All I/O in Java is based on streams.
• An input stream starts with an input device (e.g. existing file, modem, etc.) and travels as a continuos series of bytes to a program.
• An output stream starts with a program sending a series of bytes to an output device (e.g. data file, modem, etc.).
• Data for a particular system is often organized in a hierachy
• Database - collection of files
• File - collection of records
• Record - collection of fields
• Field - one or more bytes
• Byte - 8 bits

Binary Files versus Text Files

• A binary file is processed as a sequence of bytes, whereas a text file is processed as a sequence of characters. Both types store data as a sequence of bits and bytes (0’s and 1’s).
• Text files are portable because they are based on the ASCII code.
• Binary files are not portable because they use different representations of binary data.
• IS programs typically deal with textual files. This is due to the fact that text files is the easiest way to enter data (using notepad) or to import/export data with programs like MS Excel and MS Access. This is the type of file we will address in this class.
• Java binaries are platform independent because Java defines the sizes of binary data.
• In other systems, the number of bytes used to store data differ, for example, in ASCII systems, 1 byte is used to store each character, while under UniCode it is 2 bytes. Some MS Windows programs use integers that are two bytes long and some 4 bytes long. Thus a data file  created by one system could not easily be read by another.
• Subclasses of DataInputStreams and DataOutputStreams are used for binary I/O.
• Subclasses of Reader and Writer are normally used for text I/O.
• Example: PrintWriter has methods for printing all types of data.
• public void print(int i);  public void println(int i);
• public void print(long l);  public void println(long l);
• public void print(float f);  public void println(float f);
• public void print(double d);  public void println(double d);
• public void print(String s);  public void println(String s);
• public void print(Object o);  public void println(Object o);
• Note :
• the "print" methods write the data to the stream, whereas println writes the data followed by an end of line character.
• this is a good example of polymorphism.

Buffering and Filtering

• Different filters which can help transform the bytes as they enter and leave your program via streams
• Filter types and their associated classes:
• Byte streams - data is a series of bytes that can be read/written, the bytes are read and written. (FileInputStream,FileOutputStream)
• Data streams - data is a series of values that can be of type boolean, byte, double, int, long, and short. (DataInputStream,DataOutputStream)
• Character streams - data is a series of characters. (FileReader, FileWriter)
• Streams can also be "buffered", these types of streams cache the data in memory for efficiency.
• A buffer is a relatively large region of memory used to temporarily store data during I/O.
• BufferedInputStream and BufferedOutputStream are designed for this purpose.
• The StringReader and StringWriter classes provide methods for treating Strings and StringBuffers as I/O streams.

Text based data files

• Data files can take on any format the the programmer decides on.  If the programmer is sane, then he/she will either use a delimited file or a fixed field file. Both of these types can be easily read into/outof MS Excel and MS Access.
• Delimited files - use a special character such as a tab between each field. the fields can then be as long or as short as necessary. You can use the StringTokenizer object to help parse the lines.
• Fixed width field files - predesignate which characters on a line go to what field.  If the field is too long to fit into the designated space, then the data is lopped off. If it is shorter than the designated space, then spaces are appended. You can use the subString method of the String object to parse lines in this type of file.
• Under this method a program reads/writes the data files a line at a time. After each line is read, then the program must separate the line into its component fields (parse). For example, a customer file might have a separate line for each customer, on that line would appear the customer's name, address, city, state, etc. Numeric fields read in as strings would have to be converted to numbers using Integer.parseInt() and the Float.parseFloat methods (be sure to catch the NumberFormatException).
• To perform this in Java it is best to associate one data object with the file (e.g. CustomerList) and another with each record (e.g. Customer).  The file object reads the file a line at a time, then passes it to the record object to parse into its fields and store it in its attributes. Example Customer file, using fixed width fields
• To read data from a text file you must do the following:
1. Create a FileReader (input stream) object to read the file
2. Convert the FileReader to a BufferedReader object
• you could also use the LineNumberReader object, this does the same thing, and keeps track of the line number read from the file for you.
3. Read the data lines using one of BufferedReader's methods (e.g. readLine), when a null is returned you have hit the end of the file.
4. Close the file
• Example code:

    try{
      String line;                                                     // declare a string object to read data into
      FileReader file = new FileReader(filename);    // create a file reader stream, filename is a string
      BufferedReader bReader = new BufferedReader(file);  // convert it to a buffered reader so we can use readLine()
      boolean eof = false;                                       // use this to watch for the end of file

      while(!eof){                                                  // while not at the end of the file
         line = bReader.readLine();                         // try to read one line of text
         if(line == null)                                           // end of file reached ??
           eof= true;                                               // then exit while loop
         else
          System.out.println(line);                           // do something with the line, for now just print to the DOS window
        }
      bReader.close();                                            // close the file (also closes the stream)
    }
    catch(IOException e){
       System.out.println("IE Exception when loading productlist from [" + filename + "] error: " + e.getMessage());
     }

Text based report files

• Text based report files generally take on one of three formats:
• Text with line breaks - this is the simplest format, readable by any program, but does not allow you to have headings, tables, font changes, etc.
• HTML - becoming very prevalent since everyone has a web browser to view them and programs like MS word can read them as well. They are relatively easy to create and allow formatting. They are also platform independent.
• RTF - rich text files. This format was invented by Microsoft so that documents could be shared between platforms and between word processor more easily (than .DOC files). They are a bit more difficult to create and may not be as portable as HTML since the standard is very "loose", i.e. not all word processors recognize all the RTF formatting tags.
• To write data to a text file you must do the following:
1. Create a FileWriter (output stream) object to write the file
2. Convert the FileWriter to a PrintWriter object
• you could also use the BufferedWriter object, this object takes a little more coding since it does not have a println method
3. Write the data lines using one of PrintWriters  methods (e.g. println)
4. Close the file
• Example:

    try{
      FileWriter file = new FileWriter("test.txt");    // create a file writer stream
      PrintWriter pWriter = new PrintWriter(file);  // convert it to a PrintWriter so we can use all the print and println

      String fred = "Fred Flinstone";  // declare and initialize a string variable
      int age = 33;  // declare and initilize an integer variable
      float salary = 32000.01F;  // and a float variable

      pWriter.print("Hello, my name is ");
      pWriter.println(fred);
      pWriter.print("I earn ");
      pWriter.print(salary);
      pWriter.println(" rocks a year");
      pWriter.print("I am only ");
      pWriter.print(age);
      pWriter.println(" years old.");
      pWriter.close();

     }
     catch(IOException e){
       System.out.println("oops");
     }


• Produces the following output:

Hello, my name is Fred Flinstone
I earn 32000.01 rocks a year
I am only 33 years old.

• Note : The DecimalFormat object could have been used to format the salary

File Class

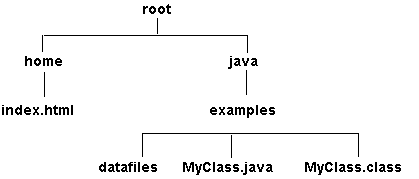

• A path is a description of a file's location in its hierarchy.


• Absolute path name,  complete path specification starting from the root of the file system:
•   /root/java/example/MyClass.java
• Relative path name, specified in relation to the current directory:
•   MyClass.java
• In the previous example, if the file did not exist or the user did not have proper access priviledges (read/write), then an IOException would have resulted. To avoid this, the File class can be used.
• Some useful methods provided by the File class

        public boolean canRead();         // Is the file readable?
        public boolean canWrite();        // Is the file writeable?
        public boolean delete();           // Delete the file
        public boolean exists();           // Does the file exist?
        public String getParent();        // Get the file or directory's parent
        public String getPath();           // Get the file's path
        public boolean isDirectory();    // Is the file a directory ?
        public boolean isFile();            // Is the file a file ?
        public long lastModified();       // When was the file last modified?
        public long length();               // How many bytes does it contain?
        public String[] list();              // List the contents of this directory
        public boolean renameTo(File f);  // Rename this file to f's name
• Example, the following determines if a file is readable or not.
private boolean isReadableFile(String fileName) {
     try {
         File file = new File(fileName);
         if (!file.exists())
             throw (new FileNotFoundException("No such File:" + fileName));
         if (!file.canRead())
             throw (new IOException("File not readable: " + fileName));
         return true;
     } catch (FileNotFoundException e) {
         System.out.println("IOERROR: File NOT Found: " + fileName + "\n");
          return false;
     } catch (IOException e) {
         System.out.println("IOERROR: " + e.getMessage() + "\n");
         return false;
     }
} // isReadableFile

Command Line Arguments

• Command line arguments are strings separated by spaces that follow the program name on the command line.
• Under MS Windows the command line can be typed into a DOS box or into the Run command under the start menu.
• In a command-line interface arguments specified on the command line are input to the main() method as an array of strings, each item in the array has one argument.
• They are an alternative to using a GUI environment (FileDialog or JFileChooser).  Most MS Windows programs will accept input both GUI and command line inputs.
• Example:
public static void main(String args[]) {
    FileCopy fc = new FileCopy();
    if (args.length >= 2)
        fc.fileCopy(args[0], args[1]);
    else {
        System.out.println("Usage: java FileCopy srcFile destFile");
        System.exit(1);
    }
} // main()

Reading and Writing Objects

• To read or write an entire object (as opposed to a single attribute) requires you to implement procedures within that object that can turn the object into a stream of bytes (for output) and convert a stream of bytes back into the object (on input)
• Object serialization is the process of writing an object as a series of bytes.
• Deserialization is the opposite (input) process.
• ObjectOutputStream - can be used to serialize objects
• ObjectInputStream - can be used to deserialize objects
• Steps needed to make an object serializable:
• The object should implement the Serializable class (no need to add extra method)
• All its data members should be serializable or declared as transient.
• if an attribute is another object, then that object must be serializable
• attributes of type int, float, etc. are already serializable
• The object should provide routines for reading and writing
• e.g. writeToFile, and readFrom File (these could take on any name)

JFileChooser

To use the JFileChooser object to prompt the user for a file name you must:

• Create a JFileChooser object and tell it to be visible

         JFileChooser dialog = new JFileChooser();  // create the chooser object
         int result = dialog.showSaveDialog(this); // use Save for output file or Open for an input file

• Once the filedialog object is visible your program will wait for a response, then you should check the result to see if a file was selected. If result is not equal to JFileChooser.APPROVE_OPTION, then the user pressed cancel

          if(result != JFileChooser.APPROVE_OPTION)   //  if no file was selected, just exit
            return;
• Once you know something was selected, then you can get  full path to the file by accessing the getSelectedFileMethod, this method returns a File object that can then be asked for its path.

          fileName = dialog.getSelectedFile().getPath()
• When you show the JFileChooser object you can use two methods, Open or Save. If  open method is called, then the file must exist. If the Save method is called, then JFileChooser will ask the user whether or not they want to overwrite a file that already exists (should they select an existing file).

         int result = dialog.showSaveDialog(this); // use Save for output file
         int result = dialog.showOpenDialog(this); // use Open for input file
• Before calling the one of the show methods you can call one of a number of methods to set the title bar, current directory, and other aspects.
• Example:
JFileChooser chooser = new JFileChooser();
int result = chooser.showOpenDialog(this);

if (result == JFileChooser.APPROVE_OPTION) {
    File file = chooser.getSelectedFile();
    String fileName = file.getName();
    display.setText("You selected " + fileName);
} else
    display.setText("You cancelled the file dialog");

Advanced example:

• This example reads in a tab delimited text file that contains student first names, last names, major, credits earned, and gpa. It has a function that formats a report in HTML format using an HTMLPrinter object created for that purpose.
• Input data can be specified on the command line (java IOSample studentdata.txt) or opened via a menu item that uses JFileChooser
• The example consists of three classes:
• IOSample.java - GUI interface
• Student.java - handles a student object
• StudentList.java - inherits Vector and handles a list of student objects
• HTMLPrinter.java - formats output in html format
• studentdata.txt - data file

Other Notes:

• Some Java Objects, for example JTextArea provide their own methods for writing to a file. All you need to do is to open a stream of the appropriate type and pass it to the method. this was done in the TextEditor example presented in chapter 9.
• You should use the File.separator constant when defining paths, not all systems use a '\' character. MS Windows likes both '\' and '/' characters, but Unix does not!

Summary:

Keywords: absolute path name, buffering, buffer, binary file, command-line argument, database, data hierarchy, directory, end-of-file character, field, file, filtering,input stream, output stream, path, platform independent, record,relative path name, serialization, stream, text file, UTF


Suggested Excercises: 1, 2, 3, 4, 7, 8, 12, 15, 17, 18
